How to interpret En1092-1 Flanges PN ratings?

Introduction

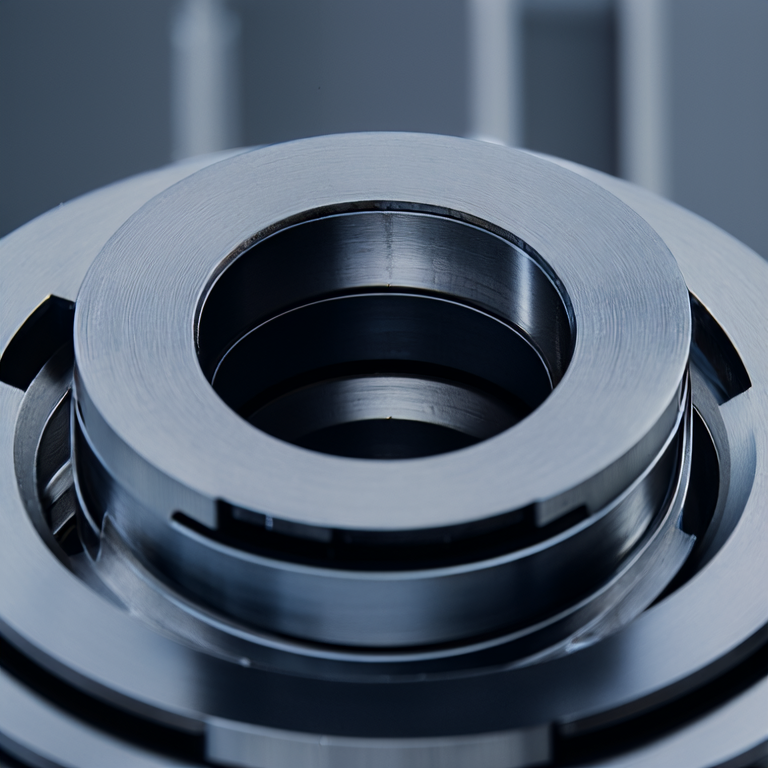

When you work with flanges, understanding their specifications can be confusing. One crucial aspect is the PN rating. PN ratings help to determine pressure limits and performance. Flanges like the En1092-1 are used in various applications, so knowing how to interpret these ratings is vital. The right PN-Class Flange can ensure safety and efficiency in your projects. Why does it matter? Let’s explore the importance of pressure ratings for your flange applications. En1092-1 Flanges Image">

Summary Answer

To interpret En1092-1 Flanges PN ratings, familiarize yourself with the numerical value associated with the PN class. This number indicates the maximum pressure the flange can handle, measured in bars. For instance, a PN10 flange can operate up to 10 bars of pressure.

Understanding PN Ratings

1. What Does PN Stand For?

   PN stands for “Nominal Pressure.” This rating helps determine the maximum allowable pressure for a flange. The higher the number, the greater the pressure the flange can withstand.

2. How is PN Rated?

   PN ratings are indicated by a number, such as PN6, PN10, or PN16. This number denotes the pressure in bars. For example, a PN16 flange can hold up to 16 bars, making it suitable for high-pressure applications.

3. Why Do PN Ratings Matter?

   Understanding these ratings is crucial for safety and design. Choosing the right PN-Class Flange can prevent leaks and failures. Using a flange beyond its rating could lead to accidents or costly repairs.

Case Study: PN Rating Impact

A case study showed that a factory using PN6 flanges in a high-pressure system had several leaks. When they switched to PN16 flanges, leaks significantly decreased, illustrating the importance of choosing the right PN class.

Conclusion

In summary, understanding En1092-1 Flanges and their PN ratings is essential for safe and efficient operations. The PN rating tells you the maximum pressure your flange can handle. Always choose the correct PN-Class Flange to ensure your projects run smoothly and safely.

FAQ

What is the difference between PN and other flange ratings?

PN ratings are specific to pressure limits. Other ratings may include temperature or different dimensional standards.

How do I know which PN rating to choose?

Choose based on the pressure requirements of your system. Always select a rating above the expected pressure.
